By now, we’ve all heard concerning the Synthetic Intelligence (AI) surge that’s going to demand unprecedented quantities of vitality. Even the Worldwide Power Company (IEA) launched a report on Power and AI lately. The superior vitality supplies which are the muse of those digital options are semiconductors.

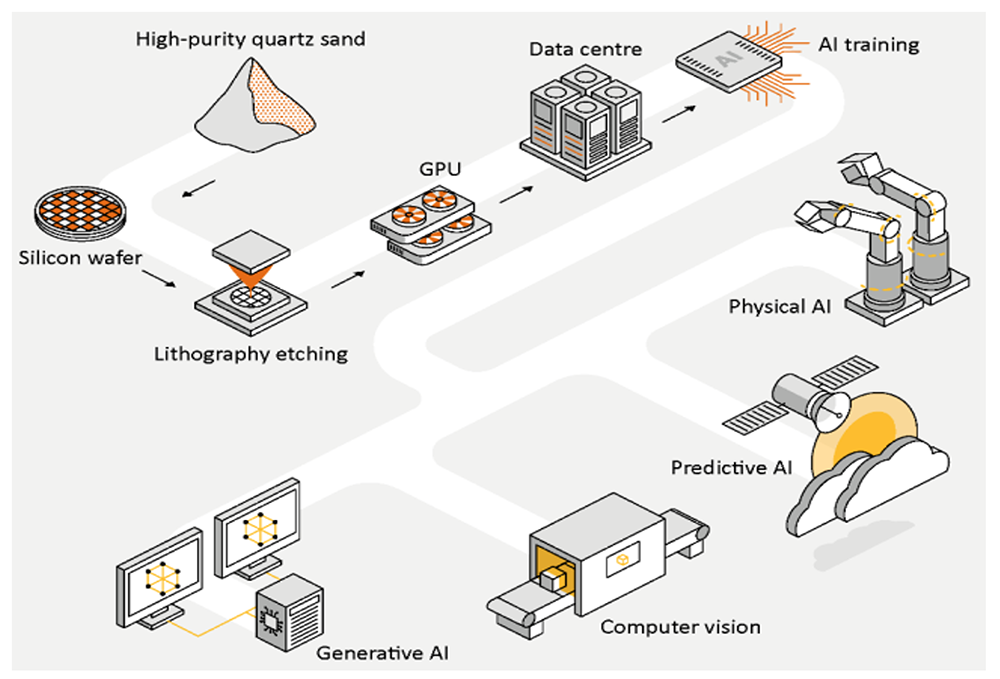

Semiconductors and AI Linked by a Extremely Complicated Provide Chain
Supply: Worldwide Power Company, 2025
What are Semiconductors?
Do you think about that electrical energy flows by means of energy cables like water flowing by means of a pipe? It doesn’t. The electrical energy is at all times there and accessible by means of nodes, e.g., your own home’s energy retailers, which are like gates that open and shut in line with whenever you want energy. Electrons circulate freely by means of conducting supplies when these gates are open to ship energy to your electrical automobile, for instance.
Equally, semiconductors may be regarded as having gates that open and shut, permitting electrons to circulate and create circuits. Semiconductors are primarily constructed on silicon, an ample and environment friendly materials. These are constructing blocks that type transistors and different parts which are then built-in into complicated circuits on chips. These chips type the core parts that ship computer systems, AI, and different digital options everyone knows.
Semiconductors Allow Cleantech, However Manufacturing Emits Carbon
Regardless of the tiny nature of semiconductors, manufacturing consumes numerous time, cash, and sources. Constructing a single fab can value upwards of $25B because of the complicated manufacturing processes which are comprised of a whole lot of steps, over fifty sorts of gear, and extremely specialised labor. A brand new fab within the U.S. and Europe takes twice as lengthy to design and assemble and prices twice as a lot than in Taiwan.

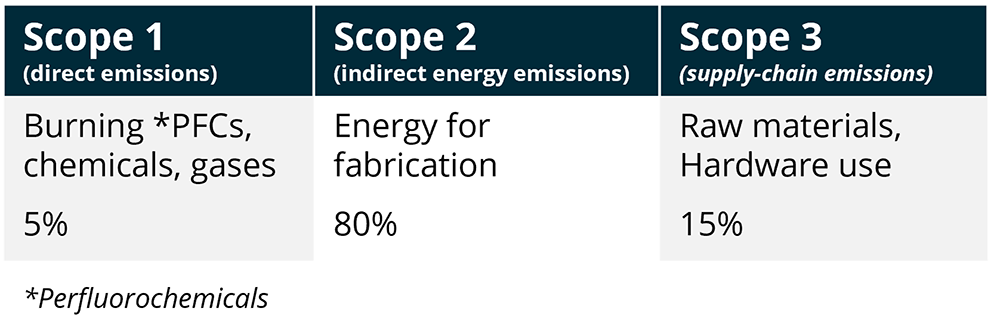

From a sustainability standpoint, manufacturing semiconductors is extremely useful resource intensive. Poisonous ‘without end chemical compounds’ (fluorinated chemical compounds/PFAS) make up practically 90% of direct emissions (Scope 1), principally used for cleansing. However changing these chemical compounds might nonetheless be 5-10 years away and non-PFAS options are 20+ years away.
Electrical energy is the only largest supply of emissions (Scope 2)—60% for manufacturing; 40% for operation of amenities. On the provision aspect (Scope 3 emissions), utilization of recent supplies doesn’t considerably impression the general industrywide emissions profile. Scope 3 emissions are primarily attributed to mining and refining from exterior of the trade. Ahead wanting, world emissions will rise 8% yearly, doubling by 2045 from 2023 (SEMI, BCG, The Semiconductor Local weather Consortium).
Water utilization is one other space of alternative for innovation. Manufacturing a single chip requires 8,327 L of ultra-pure water, and a single fab will eat upwards of 25M-35M L each day. In Taiwan, fabs will recycle 80% of water utilization, however in most different nations solely 10% or much less is recycled. From 2021-2024, Micron and Aqua Membranes had been growing know-how to recycle water utilization. After profitable trials, the 2 are dedicated to recycling 95% of Micron’s water utilization by 2030.
Key Improvements – Design, Photonics, and Compound Supplies
No single breakthrough innovation is catapulting the trade ahead from a sustainability standpoint, however there are a selection of thrilling areas to concentrate to.
Design – Mental Property (IP) Reuse
IP reuse and discovery is primarily achieved manually by engineers, however digital options are coming on-line breaking by means of the traditionally cost-prohibitive obstacles that stored many fabs from uptake.
Thalia is a supplier of a software program platform that allows semiconductor companies to develop new merchandise utilizing present chip designs for analog. Thalia leverages AI/ML to mine knowledge for IP reuse to streamline design to fabrication. This automation results in decreased cycle time and prices for its clients and finally improved element reliability.
Design – Supplies
The person wafers could also be designed with compounds like gallium nitride or indium phosphide. These could have effectivity will increase and will lead to carbon emissions reductions at smaller scales.
PseudolithIC is a producer of hybrid semiconductor merchandise which combine compound semiconductor chiplets into silicon wafers. These compound chiplets mix the vitality capability of excessive vitality supplies (compound III-V) like gallium, indium, and so forth., with silicon. This maximizes efficiency whereas decreasing manufacturing prices. It’s concentrating on the RF market with protection and telecom markets main in demand.
Fabrication – Photonic Built-in Circuits (PICs)
PICs use gentle (photons) quite than electrical energy to course of data. This interprets into vitality waste discount for quicker and extra environment friendly knowledge dealing with. Whereas not projected to scale within the 2030s, PICs do symbolize vital vitality financial savings potential. It’s thought that PICs will have an effect much like the microelectronics revolution within the Eighties. PICs might ship merchandise which are an order of magnitude quicker than right this moment’s electronics.
NXP Semiconductor backed Sensible Photonics is a producer of indium phosphide (InP) semiconductors for PICs. Sensible Photonics lately partnered with X-Fab and Epiphany Design to show InP-on-Silicon for optical transceivers. It intends to focus on datacenters, sensing, and telecom.
Metrology
High quality management, course of optimization, and testing software program and gear maintain contaminates out for top precision manufacturing.
Wooptix is a producer of semiconductor metrology gear incorporating wavefront section imaging (optics) for non-invasive sensing to make sure that every element meets stringent high quality requirements.
K2 Photonics developed a single cavity dual-comb laser for metrology for semiconductor inspection. This gives speedy and exact thin-film inspection.
$2.6B Whole VC Funding for Semiconductors from 2020-2024:
Removed from $1T-$3T Wanted by 2030
Geopolitical Tensions, Rising Prices, Undeveloped Provide Chains
The chance to bolster AI and datacenters, amongst many different cleantech purposes, is threatened by the semiconductor trade’s focus in Taiwan. Vulnerabilities throughout the provide chain are additional exacerbated by geopolitical tensions just like the U.S.’ 32% tariffs imposed on exports from Taiwan. We’ve seen vital funding by the general public sector just like the $53B U.S. Chips & Science Act or the $47B EU Chips Act.
However these investments haven’t resulted in any vital breakthrough technological developments but, particularly in Europe and China. Nations are pressuring incumbents to develop enterprise exterior of Taiwan, however incumbents are pushing again, calling on policymakers to supply monetary incentives, e.g., subsidies for supplies. Nonetheless, the present venture pipeline is booming, notably for the U.S. that has dedicated over $540B in provide chain investments since 2020 by way of grants, loans and venture improvement:
- TSMC has invested $165B to construct new fabs within the U.S.
_ - Nvidia introduced a $500B plan to fabricate in Arizona in partnership with TSMC and plans to construct out extra fabs in Texas with Foxconn and Wistron
_ - Apple is ready to take a position over $500B to construct new fabs in U.S., as effectively

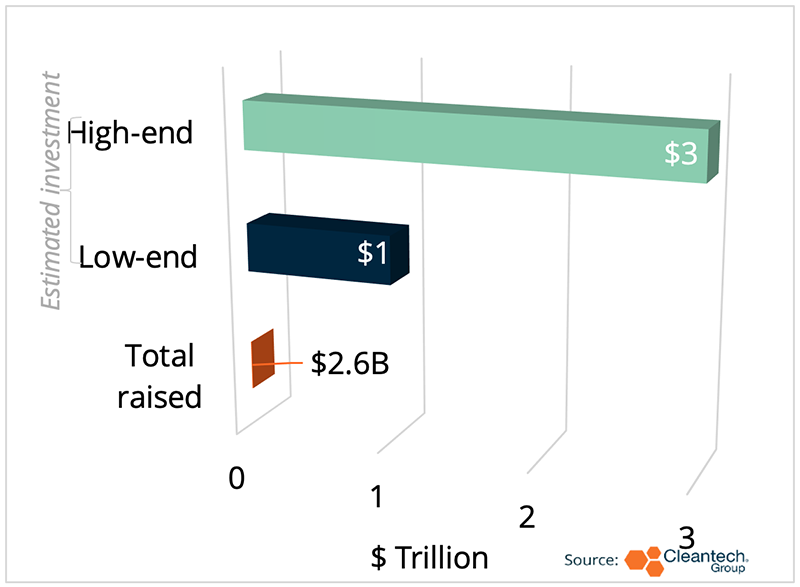

From 2020-2024, we tracked over $2.6B of VC investments for semiconductor innovation. That is removed from the estimated $1T-$3T price of funding wanted from 2020-2030 in R&D and capital to ship the following era of semiconductors (The Semiconductor Trade Affiliation, BCG). These figures are estimated for the semiconductor trade as a complete, not simply cleantech. We spent roughly this a lot to get us the place we’re right this moment, so these figures, whereas massive, are manageable.
A part of the rationale for these massive figures is the price to construct a semiconductor fab and its extremely complicated provide chain. Because of this complexity, no single producer nation is able to manufacturing semiconductors with out sourcing some a part of the provision chain from elsewhere. This presents an particularly profitable alternative for play on this distributed provide chain to permit for faster lead occasions and higher collaboration among the many ecosystem.
