Compressed air vitality storage is coming to Australia. Hydrostor, a Canadian firm has given the go-ahead to construct a 200MW facility at Damaged Hill in far western NSW.

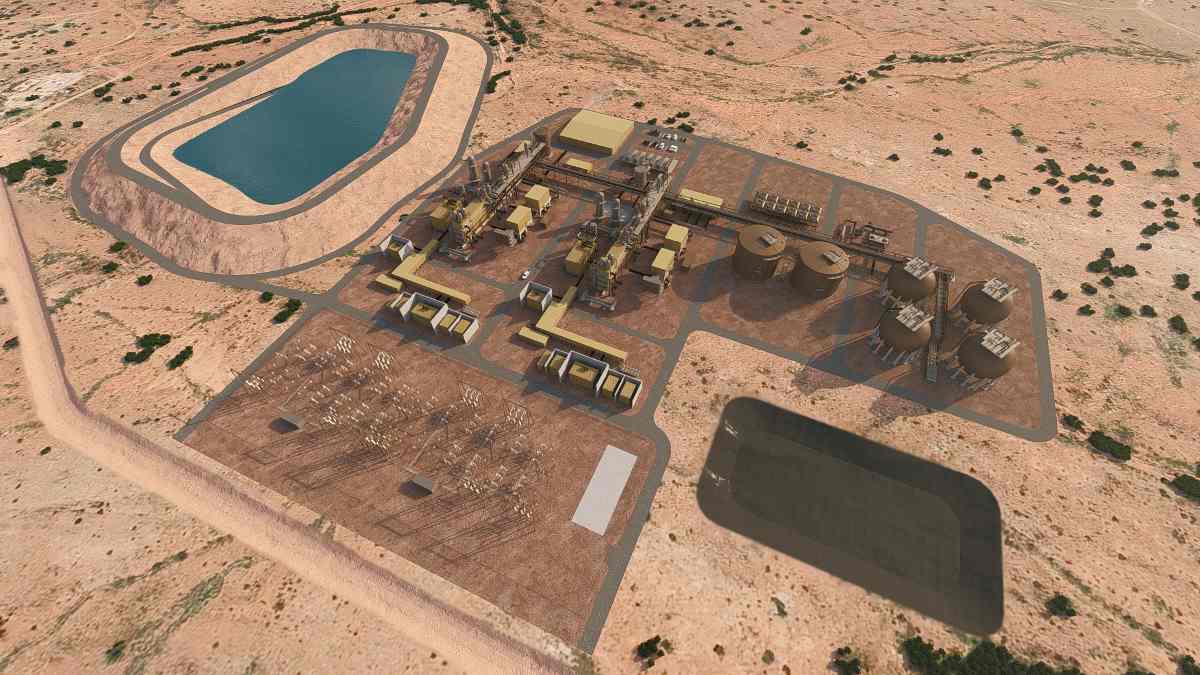

Building of the Silver Metropolis Superior Compressed Air Power System (A-CAES), solely the second on this planet, is slated to value at the least $652 million, with $45 million to come back from the Australian Renewable Power Company (ARENA), and is because of begin on the finish of 2025.
Loads of energy is on supply. Damaged Hill has a inhabitants of 17,500 with a mean electrical energy demand of 40MW, says electrical energy provider, TransGrid. Silver Metropolis may energy 80,000 properties in peak demand.
A-CAES pumps compressed air down a 600m deep shaft right into a water-filled underground cavern. The air displaces the water which works up one other shaft, on the different finish of the cavern, into an above-ground reservoir. When electrical energy is required, the compressed air is compelled again up its shaft via a floor turbine and the saved water falls again into the cavern, by way of a turbine, creating vitality.
Sounds easy. However why do it?
To supply an vitality retailer in occasions of congestion, Martin Becker, Hydrostor’s Senior Vice President Origination and Improvement instructed Cosmos. “There’s a number of capability being constructed, however not all the time, all day, day by day, a necessity for that capability to get dispatched.” ‘Dispatched’ is electricity-speak for ‘despatched down the road so customers have energy’.
Damaged Hill has two present renewable vitality services. Damaged Hill Photo voltaic has 53MW of capability and is 7km west of city; Silverton Wind Farm is 200MW and is 25 km to the north-west.
“If there are constraints on the transmission line, that vitality mainly sits idle” says Becker.
The Silver Metropolis facility will use that in any other case idle vitality to run its utility-scale compressor, pushing air 600m underground to displace the cavern water and push it to the floor.
“After we need to generate electrical energy, we launch a valve on the floor underneath the reservoir, after which the water rushes down the shaft and pushes the air again to floor.”
Hydrostor’s A-CAES was chosen by the Metropolis of Damaged Hill, to “be an vitality provide within the occasion of an outage” says Becker. Damaged Hill has struggled with outages. A storm in October 2024 knocked out powerlines and seven transmission towers.
“We might be contractually obliged to maintain air within the tank in case there’s an outage. So, we might begin to discharge and generate when there’s an outage. We’re changing the growing old diesel mills which might be at finish of life.”
Hydrostor claims that their patented system, known as ‘hydrostatic compensation’ maintains fixed stress within the storage cavern, a flooded void pressurised by the burden of water. The system provides the corporate its title.
Generators work higher when they’re heat. Warmth produced by the compressor is captured and saved as sizzling water in insulated, aboveground tanks till launched to “fireplace the turbine”, says Becker.
“This avoids heating the turbine with fossil fuels and makes the system an adiabatic CAES,” he says.
Batteries aren’t the most affordable vitality storage methods.
In thermodynamics, ‘adiabatic’ signifies that vitality doesn’t go away the system.
Becker says the Silver Metropolis undertaking is much like pumped hydro. “It’s the closest factor to pumped hydro, as a result of pumped hydro makes use of a big head of water.”
Worldwide renewable vitality knowledgeable, Michael Barnard, who shouldn’t be concerned with the undertaking, instructed Cosmos that A-CAES is much less environment friendly than pumped hydro.
Barnard says the 2 different older compressed air methods, a 580MW system in Germany constructed within the 1970’s, and a 2,860MW facility in Alabama within the 1990’s, are 42% and 54% environment friendly at returning electrical energy that’s put into them, (known as Spherical Journey Effectivity or RTE) These are older-style CAES, not A-CAES.
Becker says “We’re 60-65% RTE.”
Examine that to round 80% for pumped hydro. “It’s rather a lot simpler to pump water and spin generators with water, than it’s to compress gases and spin generators with gases”, says Barnard. Power losses of about 10% are anticipated every method with pumped hydro, these enhance to twenty% or extra with compressed air, he says.
The location at Damaged Hill might be in one of many silver, lead and zinc mines which had been found in 1883, by the mining firm which later grew to become BHP.
Hydrostor is utilizing the Perilya Potosi working mine to create a tough rock cavern. Exhausting rocks like granites will not be permeable.
They’ll drill and blast their very own cavern, says Becker.
Vans will carry the particles as much as the floor utilizing the mine’s ramps and tunnels, a serious saving on digging and blasting out the void and eradicating the rock by hoist. Two shafts, one for water, one for air might be sunk all the way down to the cavern, and entry to the mine might be sealed with a bulkhead, says Becker, finishing the underground operation.
Growth would imply repeating the method, and linking the 2 caverns, he says.
“With a barely larger cavern and reservoir so you would produce 50% extra vitality for five or 6% extra value, as a result of it’s simply civil work. The highest aspect stays just about precisely the identical, since you’ve nonetheless received the identical measurement mills, generators, compressors, warmth exchangers. You simply received extra gasoline within the tank, so that you’re simply constructing larger, so on $1 per megawatt hour foundation, it turns into far more economical.
“Length and scale work for us,” Becker says.
Consideration of scaling-up when capability is already effectively above that wanted for the 17,500-strong Damaged Hill inhabitants suggests Hydrostor has different plans for the surplus vitality.
Becker instructed Cosmos: “The surplus energy generated by the Silver Metropolis undertaking above and past the wants of the Damaged Hill area or the mini-grid throughout an outage might be provided into the nationwide grid, rising the penetration of renewable vitality into the system.”
Whether or not the often-repaired native grid is able to dealing with such a load is one other query. Damaged Hill’s solely connection to the nationwide grid is again up and operating after the October 2024 storm.
There are a bunch of different potential limitations to success. “Drilling underground is dangerous,” Barnard says.
“When you get underground, stuff occurs”, says Barnard. “Water creeps in from someplace. Air creeps out. For compressed air caverns, what you need is a moist overburden that seals all these cracks.” Damaged Hill is notoriously dry.
200MW of energy is within the air
The A-CAES will “have sufficient within the tank to run at 200 megawatts for 8 hours, round 100MW for 16 hours, however its not fairly linear, as a result of machines get much less environment friendly as they run down, Becker says, so 25MW might be provided for 32 hours. “We now have 1600 megawatt hours of gasoline, however the period depends on what at what degree you’re producing at.”
“One of many issues I like about them is that they’re not claiming silly effectivity,” says Barnard.
“You’re in a mining nation with miners, and you have already got the subsurface geology effectively mapped out. You’re already digging stuff there. Then Hydrostor makes as a lot sense as something.”
